Blast Equipment

SSCE-1340

SSCE-1340

SSCE-1340 high efficiency blast machine has a superior function in removing large areas of rust. It is widely used in the field of construction, marine, bridge building, mining, oil pipeline, metallurgy, boiler, machine tool, port, hydraulic engineering and many other projects. The derusting standard reaches Sa2.5~3, and its surface roughness degree is up to 25~100μm. We offer following control system 1) Manual control 2) Pneumatic 3) Electro-pneumatic remote control systems 4) Pneumatic remote control system with air blast and blow function.



 Model

 SSCE 1340

 Air Connection

 1-1/4"

 Outlet

 2"

 Air Pressure

 7bar

 Air Consumption

 6Nm3/min(At 0.7MPa)

 Nozzle

 φ10mm

 Tank Dia.

 φ412mm

 Height

 1300mm

 Capacity

 0.08 m3

 Weight

 125Kg







·       HIGH EFFICIENCY

·       POWERFUL & DURABLE

·       COST SAVING

·       SIMPLE AND EASY OPERATION

·       LOW MAINTENANCE

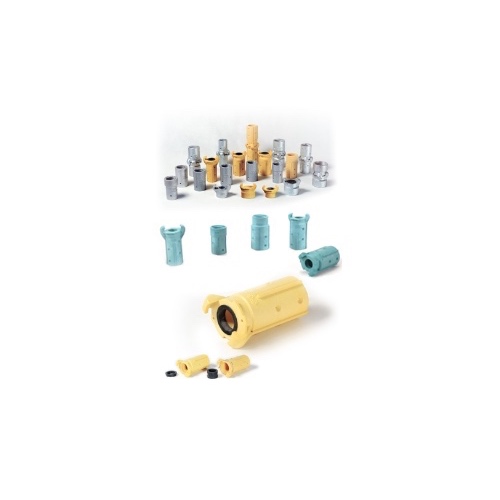

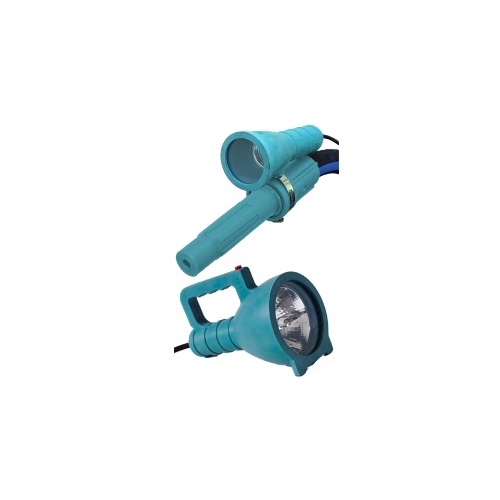

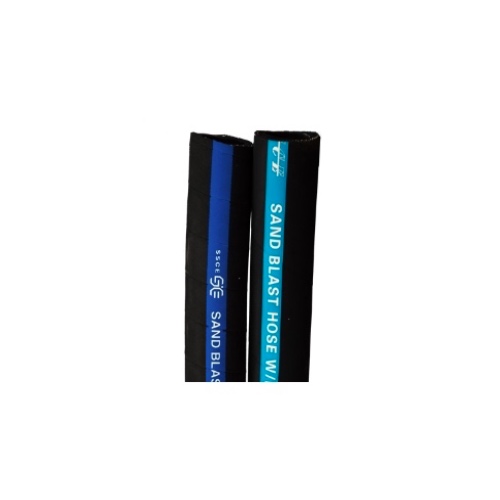

BLAST HOSEQUICK COUPLINGBLAST NOZZLEBLAST LAMP

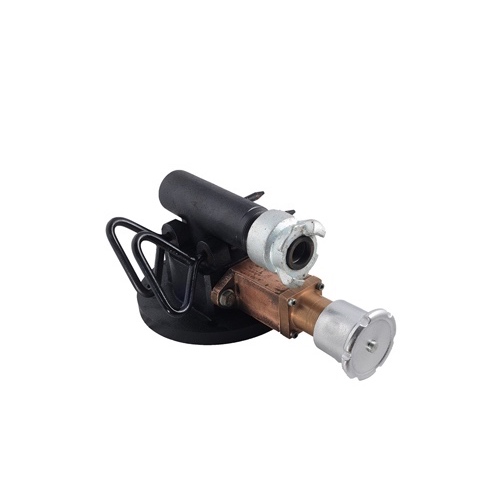

   REMOTE CONTROL

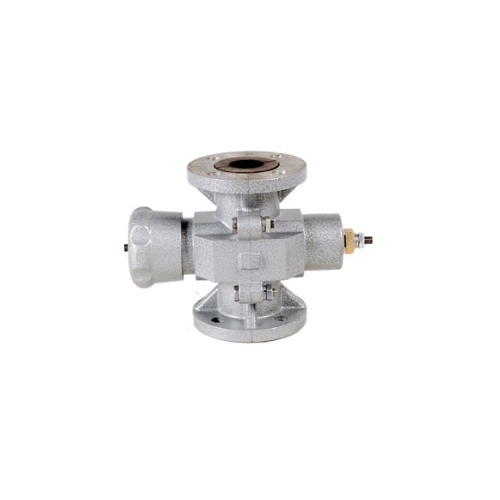

ABRASIVE VALVE

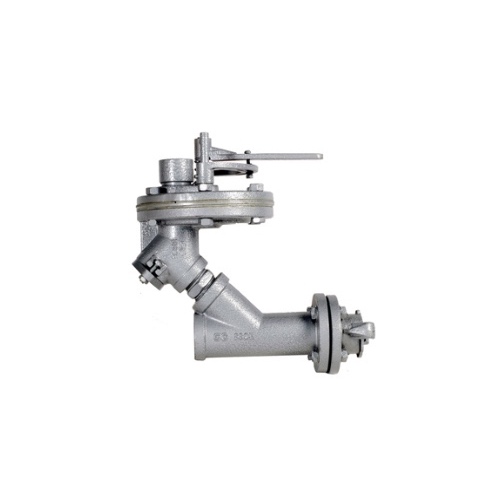

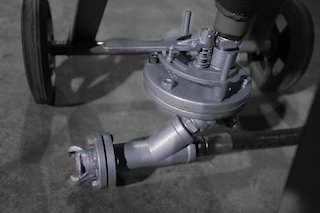

METERING VALVE A

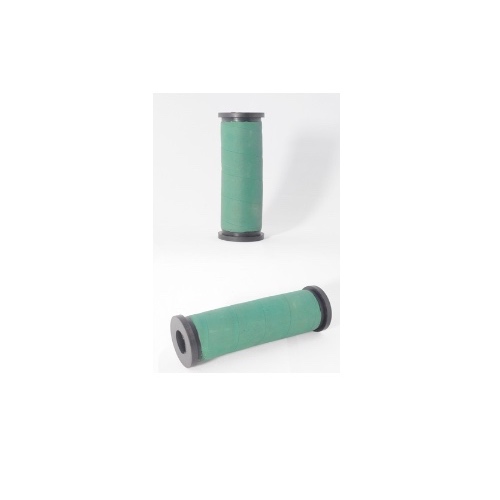

METERING VALVE BWEARABLE BUSH
