Blast Equipment

SSCE 201-450

SSCE 201-450

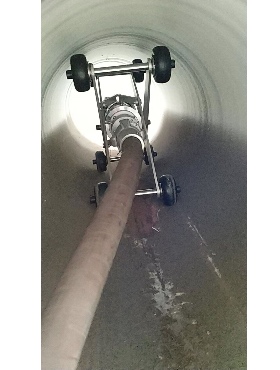

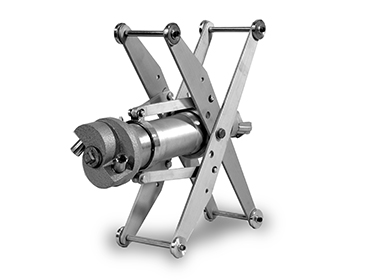

The SSCE internal pipe blast machine is a special extension device based on the development of pneumatic sand blasting machine. It is a tool professionally designed for cleaning the pipeline inner surface, and doesnt need to rotating the pipe. It is easy to use and maintain. Its a useful and efficient tool to removes rust, paint, etc.



Model

 SSCE 201-450

Pipe Dia Range

 Φ250 - Φ450

Air Consumption

 6 m3/min

Work Pressure

 0.5MPa - 0.7MPa

Max.Abrasive Granularity

 1.2mm

Dimention

 Φ200×520mm

Weight

 14.5Kg



Working PrincipleWith the compressed air,  air flows send pressure and sand to the device. and then diverted two 130 ° angle blasting to to the pipe wall. Meanwhile, with the air counterforce, the nozzle head driven nozzles rotating, moving alongthe pipeline to clean .

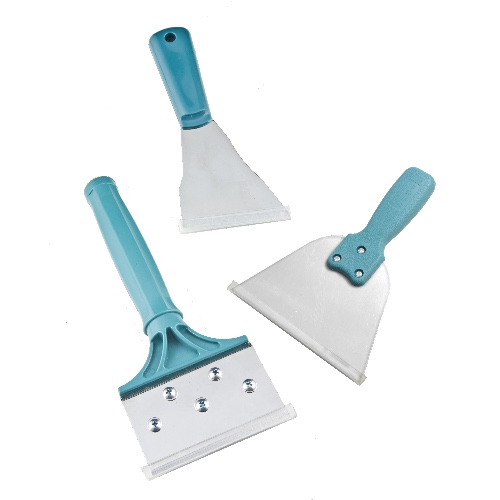

150 100 75 加强铲刀.jpg

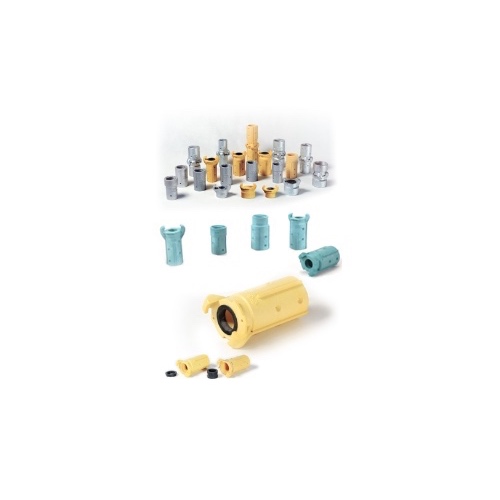

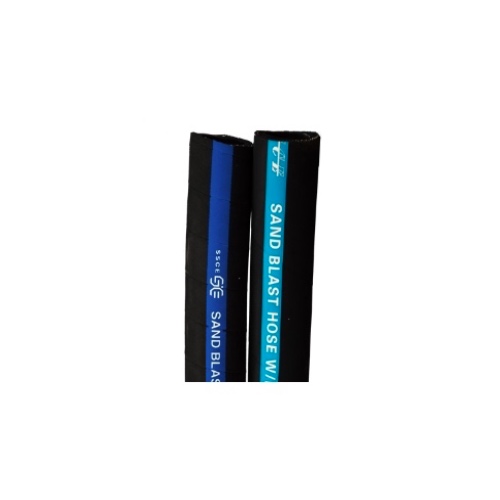

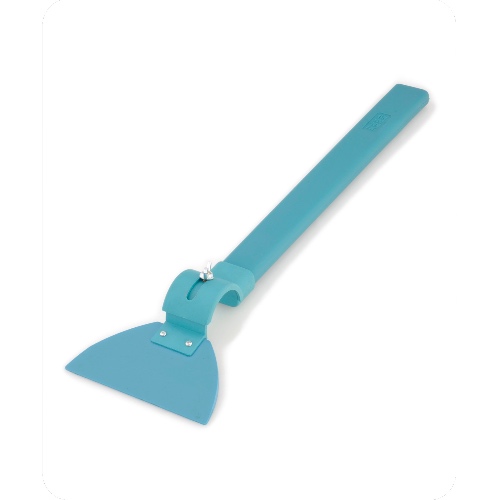

BLAST HOSEQUICK COUPLINGBLAST LAMPSTRENGTHEN SCRAPER

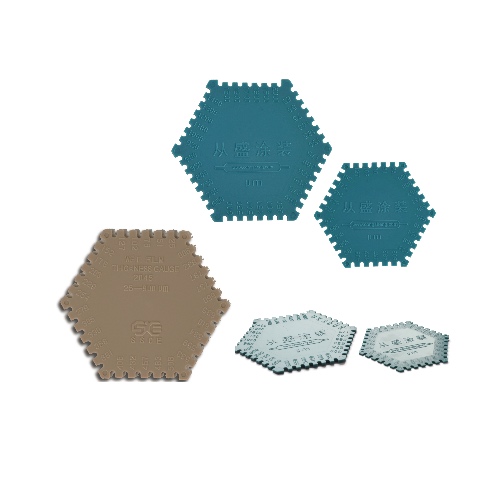

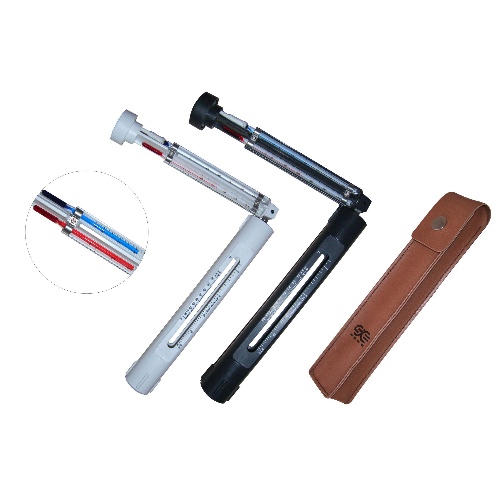

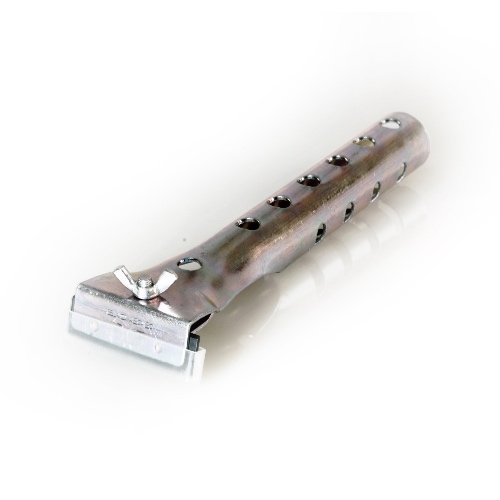

LEFTOVER PAINT SCRAPER COATING SCRAPERSLING PSYCHROMETERWET FILM COMBS
