Blast Equipment

SSCE-50

SSCE-50

SSCE-50 is a small size, flexible transportation and portable dust free blast machine.It is widely used in all kinds of working conditions, especially in the narrow space, aloft work and anticorrosion etc. repair work. It mainly applies in cleaning the rust in the cylindrical surface, angle square surface and welding line, reshaping and rectifying the curved surface, parts of aging treatment, strengthening the surface and cleaning the surface.


 Model

 SSCE-50

 Air Pressure

 7bar

 Air Comsuption

 3 Nm3/min(At 0.7MPa)

 Working Efficiency

 2~5 m2/h

 Blast Width

 32mm

 Volum(Iron Grit/kg)

 2Kg

 Empty weight

 3kg


    It is a small size, flexible transportation and portable dust free blast machine. The small unit includes all the spare parts which the blast machine need, such as sandblasting, recovery, dust separation and dust extraction. It works only need the air source. It operates conveniently that the workers could adjust the spray angle at their option, without any restriction of recovery hose length.

    It weights only 3 kg. It is easily to operate with a rotating nozzle, which allowing spray toward every direction. It is also a convenient tool which applies in narrow places. The nozzle fixes on the right-angled rubber shell. This particularly designed shell used to supply the angled surface, pipe line, thin steel plate edge, etc. This unit also could adjust to fit for the left-hand operator to work.

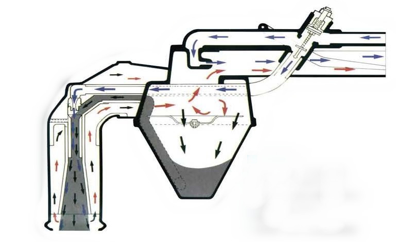

    The dust is vacuum sucked and split from the abrasives in the cyclone cleaner. This unit can effectively circulate the abrasives and grinding materials, without cover the sensitive equipment, such as the machine spare parts.
